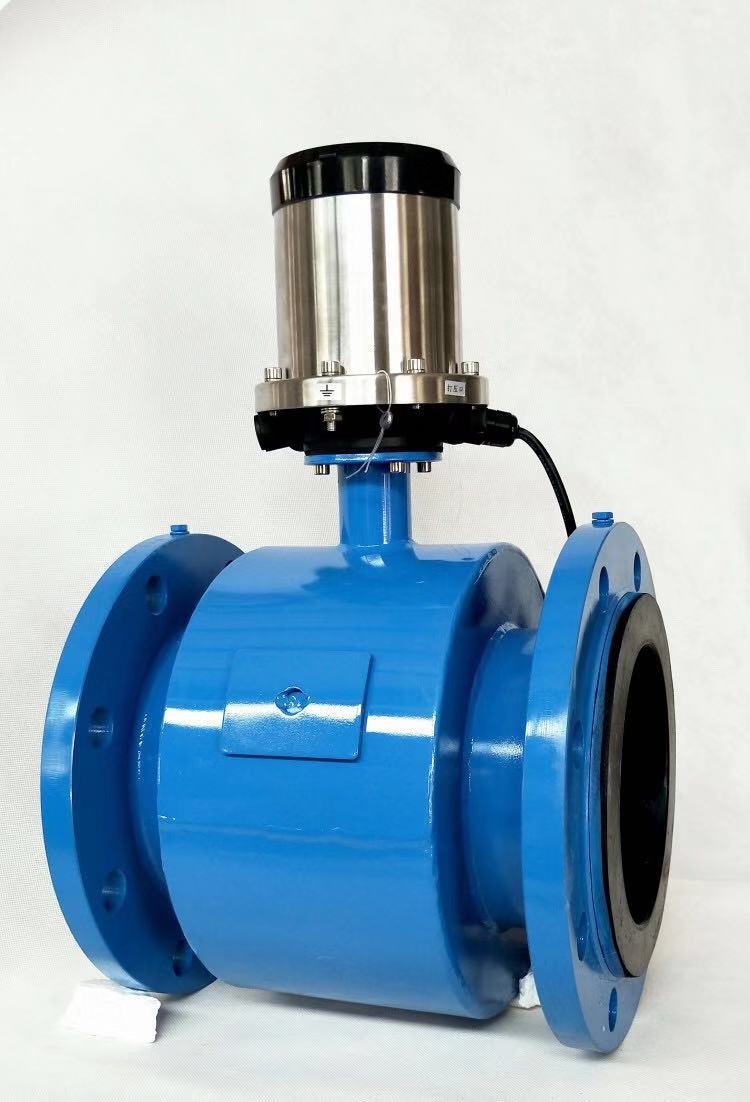

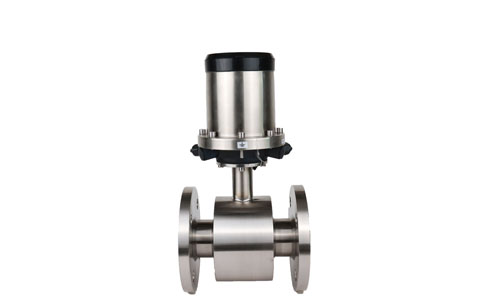

Integral Intelligent Battery type Electromagnetic Flow Meter

Integral Intelligent Battery type Electromagnetic Flow Meter

Applicable mediumliquid

Not applicablegas

Battery type electromagnetic flowmeter is designed for field installation where power supply is impossible. It'd be convenient for installation cases no outer power supply, meanwhilw require LCD display and signal output.
0371-26665688 13353783998
Description of product details

Brief Introduction


The battery powered electromagnetic converter is equipped with a lithium battery as its standard configuration, which can work consecutively three years. If a high-capacity battery is equipped, the continuous working time will be much longer.


Designed with IP68-level seal protection for its die-cast aluminum case, the battery powered electromagnetic converter is particularly applicable for damp environment, for example, underground mine and burial installation, etc.


Features


Ambient temperature: -20℃―50℃
Ambient humidity:? ≦ 95%
Protection class: IP68
Measuring range of flow rate:0 --- 15 m/s
Medium conductivity: clean water > 20 μs/cm
Range of nominal diameters measurable: DN6—DN600
Accuracy grade: 0.5%
Measurable parameters: instantaneous flow rate, instantaneous flow velocity
Test alarm parameters: fluid empty-tube test alarm, exciting current test alarm, battery capacity test alarm.
Calibrated output signal: Flow and impulse per unit volume.
Radio communication mode: GPRS.


Battery life corresponding measurement cycle time table


Measurement cycle time

(seconds)

50mA excitation life

(months)

20mA excitation life

(months)

15S

50

70

14S

46

65

13S

43

60

12S

40

56

11S

36

51

10S

32

46

9S

29

42

8S

25

37

7S

21

32

6S

18

28

5S

14

23

4S

11

18

3S

10

14

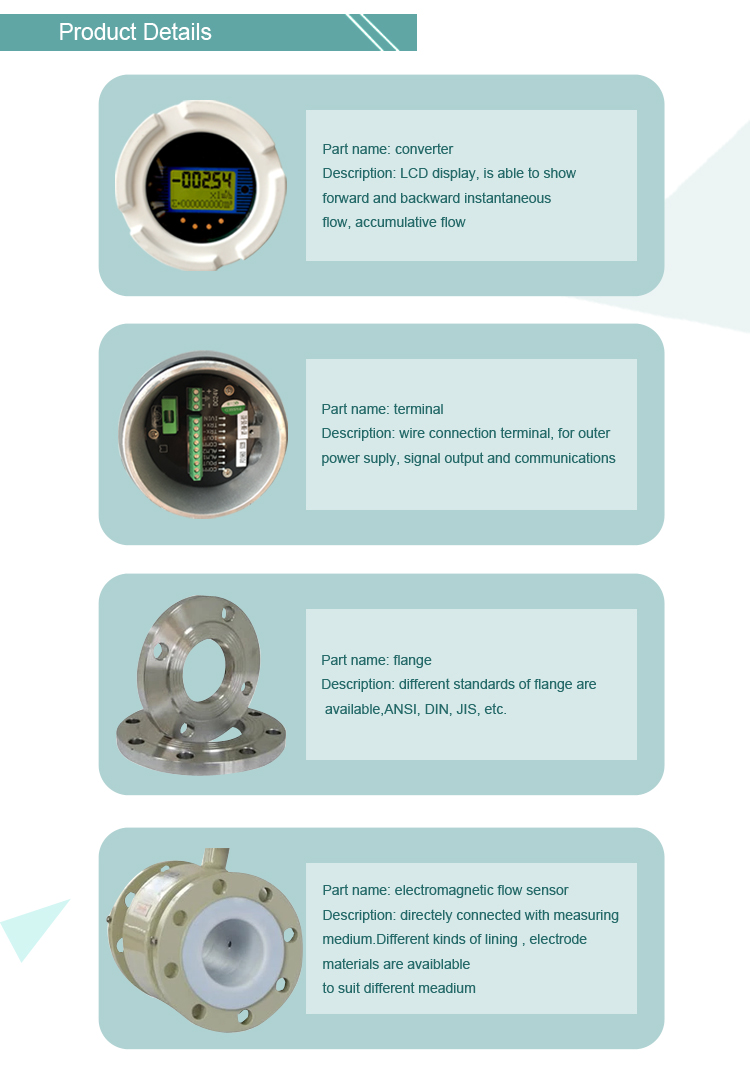

photobank (1) (1).jpg

photobank (2).jpg

photobank (4).jpg


photobank (9).jpg

photobank (5).jpg

photobank (1).png




photobank (1).jpg

Kaifeng Hollysys liquid flow meters.jpg

Kaifeng Hollysys gas flow meters.jpg

photobank (16).jpg
